Solenoid Valve 3/2-Way G1/4'' NC Brass EPDM -1-6bar/-15-87psi 24VDC 0330 64921

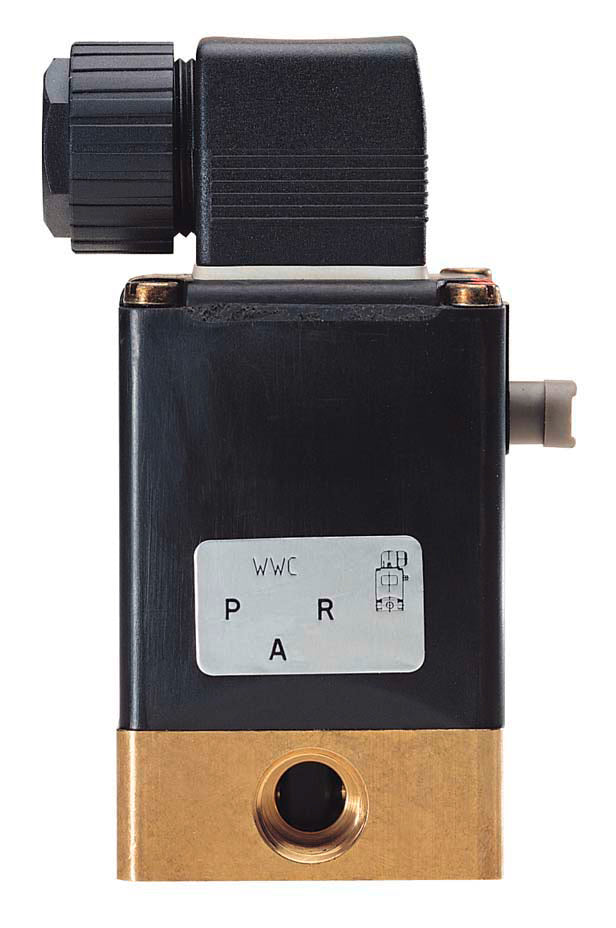

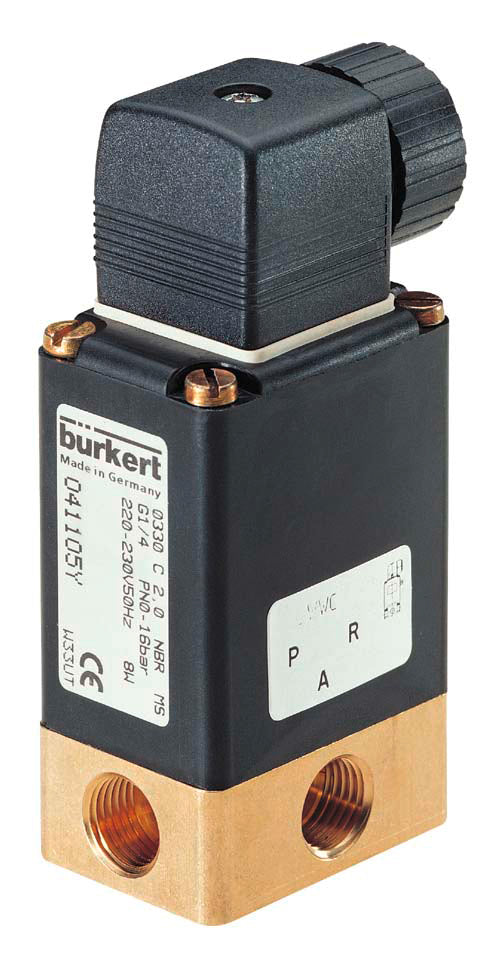

Bürkert direct operating 3/2-way solenoid valve with G1/4'' inner threads and 24V DC (direct current) coil. The valve has a brass housing with EPDM sealing and an orifice size of 3 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. This model is media separated and can therefore be used for slightly contaminated and aggressive media. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle. Satisfies all European drinking water requirements.

Important advantages

• This valve satisfies all European drinking water requirements
• Can be used with slightly contaminated or aggressive media thanks to the media separated design
• Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
• Bürkert design: proven reliability & durability

0330 series

The Bürkert solenoid valve type 0330 is a direct-operated solenoid valve, meaning no pressure difference is needed to open the valve. This design is media separated, which allows for complete isolation of your fluid from the valve's working parts. This makes it a good solution for aggressive or slightly contaminated media. The valves can be delivered with DN 2 up to DN 5 or with a flange. The pressure range depends on the voltage, but has a maximum of 16 bar. The valve has a maintenance free pivot armature design instead of the common linear translating plunger. The valve is available in IP65 or IP67 protection. The valve has few moving parts, allowing for a long service life due to minimal wear on valve components. The 2/2-way and the 3/2-way versions are specifically designed for applications such as mixing, diversion and universal direction of media. The valves are available with different housing materials, such as brass, stainless steel, PP or PVDF in combination with different sealing materials. Finally, there are options for position feedback, bi-stable, vacuum variants, as well as ATEX explosion approved versions.

Please note: this product is made to order and can therefore unfortunately not be returned.
